Product Reliability Evaluation Testing

• Temperature Cycle Test
• High-temperature, high-humidity acceleration test
• External/cross-sectional observation and component analysis
• Thermal resistance evaluation
• PWB performance evaluation

Temperature Cycle Test

This test evaluates the effect of temperature cycling and heating on the reliability of connections of PWB through-holes and other parts over a long period of time.

Testing equipment		Major testing contents
Thermal shock test machine (gas-phase)		Gas-phase temperature cycle test
Thermal shock test machine (hot oil)		Liquid-phase temperature cycle test
High-temperature oven		High-temperature exposure test

Evaluation case

Example of temperature cycling (Low of -55°C ⇄ high of 125°C)

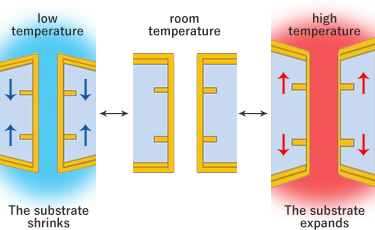

Through-hole behavior (cross-section image)

High-temperature, high-humidity acceleration test

A PWB deterioration acceleration test is performed in a humidified and heated environment to evaluate insulation reliability.

Testing equipment		Major testing contents
Temperature and humidity testing chamber		Environmental testing Migration resistance test
Highly accelerated stress test chamber		Saturated Pressure-Cooker test (PCT)

Evaluation case

Migration resistance test

Photo of migration

External/cross-sectional observation and component analysis

A grinding machine is used to perform cross-sectioning and external observation and measurement is conducted.
Also, high-magnification observation is conducted with a SEM, and a qualitative and quantitative analysis is performed using an EDS and FT-IR.

Testing equipment		Major testing contents
Microscopy		Cross-sectional observation Sample observation
Scanning electron microscopy Energy-dispersive X-Ray spectroscopy (SEM-EDS)		High-magnification observation Qualitative analysis/quantitative analysis
Fourier-transform infrared spectroscopy (FT-IR)		Qualitative analysis/quantitative analysis

Evaluation case

Copper-plated through-hole cross-sectional observation

EDS-based elemental analysis results

Thermal resistance evaluation

Evaluates the thermal resistance of PWBs with regard to soldering.

Testing equipment		Major testing contents
Far-infrared reflow oven		Reflow thermal resistance test
Solder bath		Solder heat resistance test

PWB performance evaluation

Testing equipment		Major testing contents
UL94 combustion test machine		Flammability test Evaluates the flammability of PWBs.
Xenon flash analyzer		Heat characteristics analysis Measures the heat conductivity of substances.
Tension testing machine		Peel strength measurement Measures the adhesive strength of PWB conductors and components after soldering.
Pressure-resistance testing machine		Withstand-voltage testing machine Evaluates resistance to high-voltage load for PWBs.
